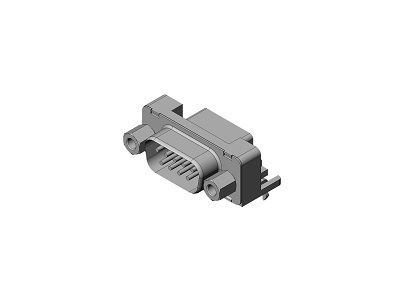

DELC-J9PAF-10L9E

TE	DELC-J9PAF-10L9E
分类	连接器
类型	连接器
品牌	航空电子(JAE)
项目	DELC-J9PAF-10L9E
描述	DELC-J9PAF-10L9E JAE
状态	Active
Features	D-Sub Connector, PCB side connector, Right angle, Pin, 9 pos.
孔位数	9.0
Number of Positions	9 pos.
Rated Current (A)	5
Connector Type	PCB side connector
Connector Style	Right angle
连接器类型	公端
Contact Type	Pin
EMI Shielded	True
PCB Mounting Style	Soldering
Shell Size	E
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	1250
Insulation Resistance (megaohm min.)	5000
Contact Resistance (milliohm max.)	13
Operating Temperature Range (deg. C)	-55 to +105
Material of Insulator	Synthetic resin (UL94V-0, Black)
Contact	With Contacts
Finish of Contact in Connecting Area	Gold plating
Finish of Contact in PCB Mounting Area	Tin or Tin-alloy plating
Mounting Method	Hook lug (Earth lug)
Screw Lock Assembly	Hexagon (short type), M2.6
Existence of Ferrite	FALSE
符合危害性物質限制指令标准	10 substances (2011/65/EU)
欧州化学物质规制标准	211 substances (19/01/2021)
组装	DE-9SF-N DEU-9SF-F0
