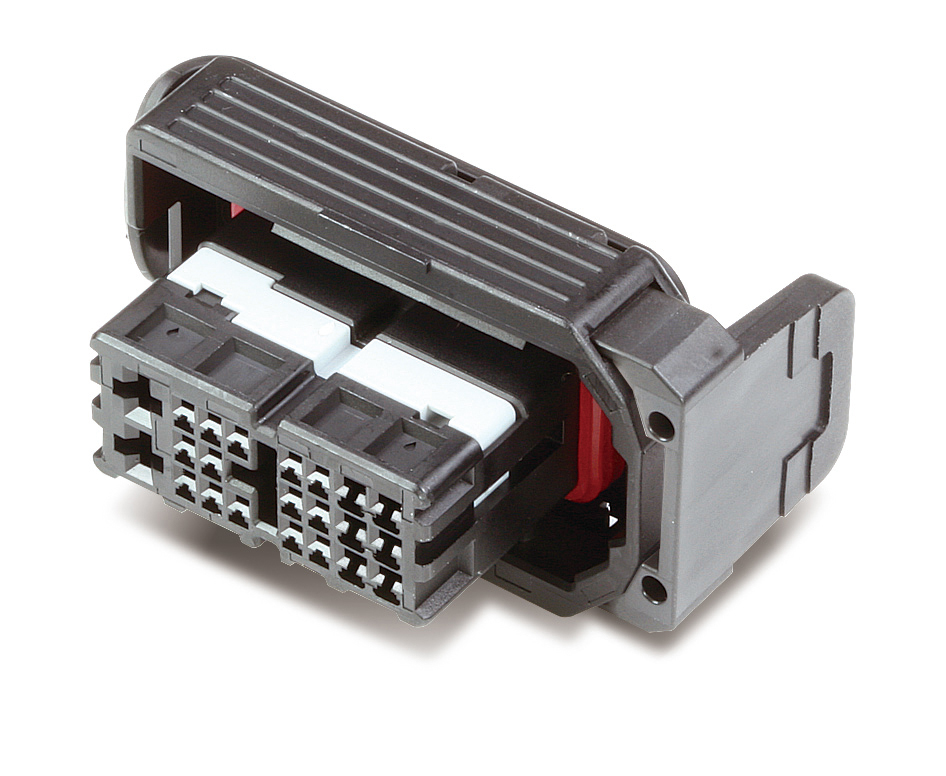

MG656854-5

TE	MG656854-5
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG656854-5 ket Black
Series	HYBRID SERIES
防水	否
Contact Resistance	025:10mΩ MAX, 060:5mΩ MAX, 110:3mΩ MAX
Dimensions	57.037.829.0
孔位数	22
颜色	Black
Mating Terminal	ST731409-3, ST731410-3, ST731411-3, ST731412-3, ST731413-3, ST731424-3, ST731425-3, ST731426-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	025:CHFUS0.13~0.22, AVSS0.3~0.5, 060:CHFUS0.22, AVSS0.3~0.5, AVSS0.85~1.25, AVSS0.3+0.3, AVSSXF1.0, 110:CHFUS0.22, AESSXF0.22, AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35, AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A0.85, FLRY-A1.0, AVSS1.25, AESSXF1.25, FLRY-A1.5, AVSS2.0, AESSXF2.0, FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85X0.85
Insulation Resistance	025:DC500V 100MΩ Min, 060:DC500V 100MΩ Min, 110:DC500V 100MΩ Min
Insulation Range	0.13~0.5,0.3~1.25,0.2~2.5
