MG643739-5

TE	MG643739-5
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
描述	MG643739-5 ket Black
Series	HYBRID SERIES
防水	是
Contact Resistance	050,090II:5mΩ Max(Initial)

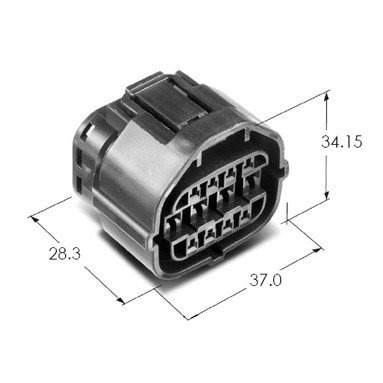

Dimensions	37.028.3534.15
孔位数	12
Mating Rear Holder	MG630712-7
颜色	Black
Mating Terminal	ST730622-3, ST731316-3, ST731103-3, ST731188-3, ST730689-3, ST730732-3, ST730733-3, ST730739-3
TPA	YES
Wire Range	AVS,CAVS 0.3-0.5,CAVS 0.85,AVSS,CAVS 0.3,AVXF,AESSXF 0.3,CHFUS 0.22,AVSS 0.22,AVS,CAVS 0.3-0.5,CAVS 0.85,AVSS 0.3-0.5,AVSS(CAVS) 0.85-1.25,AVSS 2.0,AEXF 1.25
Insulation Resistance	050,090II:DC 500V 100MΩ Min
