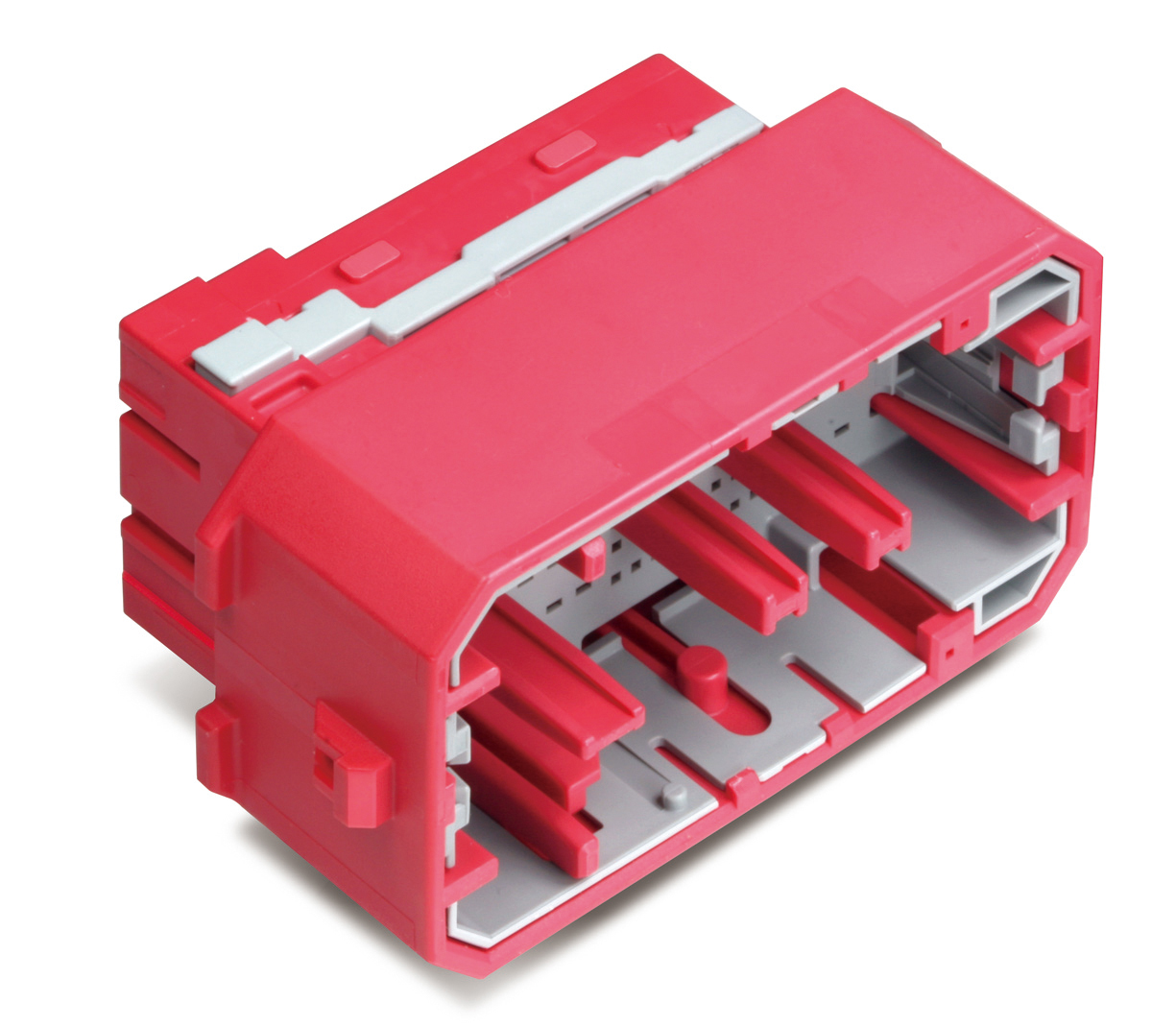

MG645922-1

TE	MG645922-1
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG645922-1 ket Red
Series	HYBRID SERIES
防水	否
Contact Resistance	025:10mΩ MAX(Initial),060:5mΩ MAX(Initial),110,250:3mΩ MAX(Initial)
Dimensions	78.0545.544.0
孔位数	82
Mating Connector	MG656790
颜色	Red
Mating Terminal	ST741345-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	CHFUS 0.22,AVSS 0.3-0.5,CHFUS 0.22,AVSS 0.22,AVSS 0.3-0.5,AVSS 0.85-1.25,AVSS 0.3-0.5,0.85-1.25,AVSS 2.0,3.0,AVS 3.0,FLRY 2.5-4.0,AVS 1.0-2.0,AVS 0.5-0.85
Mating Clip	090iiclip
Insulation Resistance	025,060,110,250:DC 500V 100mΩ MIN
