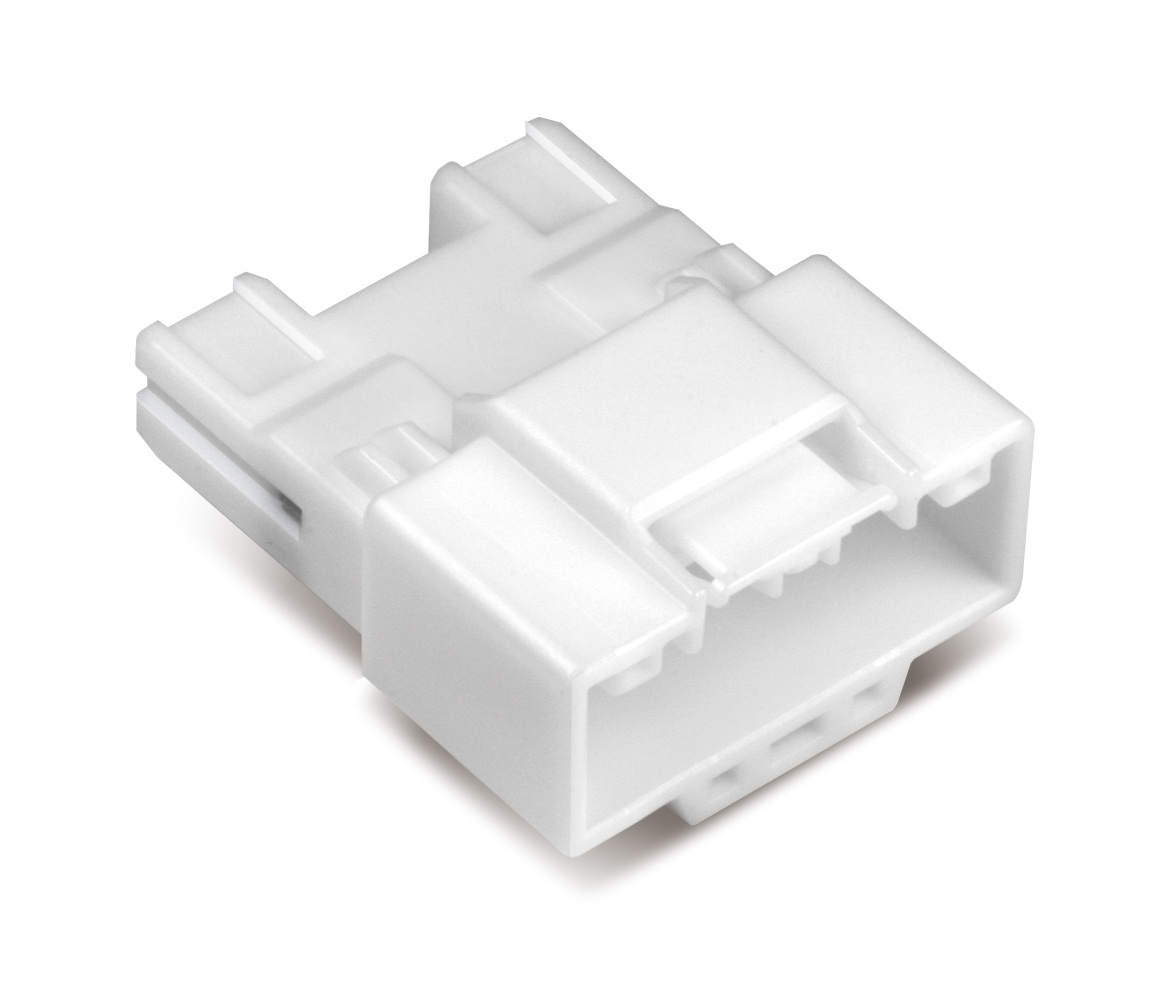

MG646115

TE	MG646115
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PK
描述	MG646115 ket Natural
Series	HYBRID SERIES
防水	否
Contact Resistance	025:10mΩ MAX(Initial),110:3mΩ MAX(Initial)
Dimensions	32.839.019.35
孔位数	12

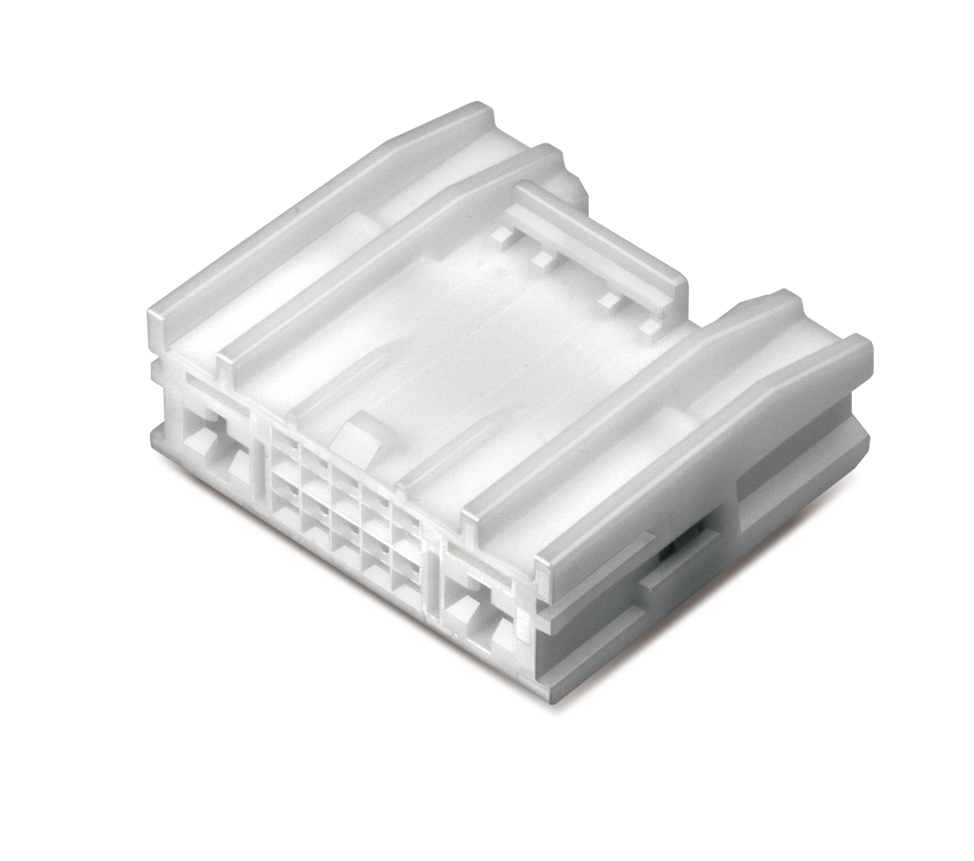

Mating Connector	MG656949
颜色	Natural
Mating Terminal	ST741360-3, ST741361-3, ST741367-3, ST741368-3, ST741369-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	AVSS 0.3-0.5,CHFUS 0.22, AVSS 1.25,AESSXF 1.25,FLRY-A 1.5,AVSS 2.0,AESSXF 2.0,FLRY-A 2.0,AESSXF 2.5,FLRY-A 2.5,AVSS 0.85*0.85,AVSS 0.5,FLRY-A 0.5,AESSXF 0.75,FLRY-A 0.75,AVSS 0.85,FLRY-A 1.0,CHFUS 0.22,AESSXF 0.22,AVSS 0.3,AESSXF 0.3,CIVUS 0.35,FLRY-A 0.35
Mating Clip	MG631267, MG631929, MG633815-5, MG633862, MG633870-5, MG634834-5, MG635682-5, MG663492-5
Insulation Resistance	025,110:DC 500V 100MΩ Min
