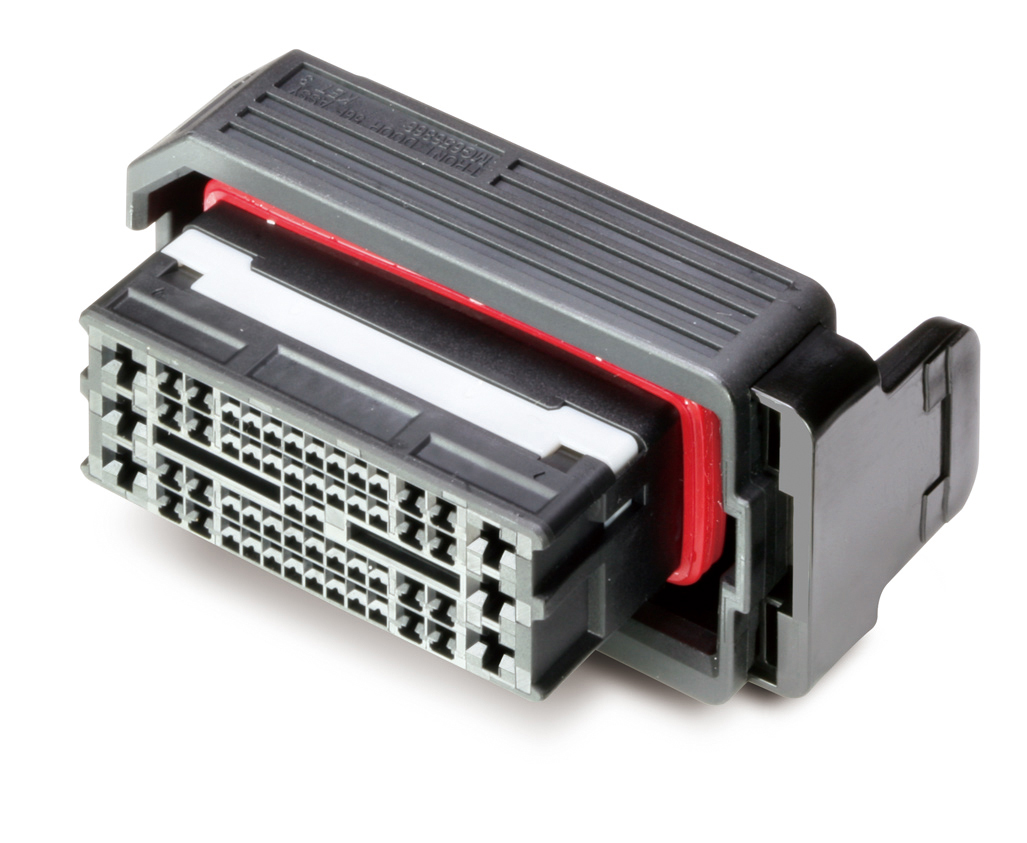

MG656866-5

TE	MG656866-5
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG656866-5 ket Black
Series	DOOR CONNT SERIES
防水	否
Contact Resistance	025:10mΩ MAX. (Initial), 060:5mΩ MAX. (Initial), 110:3mΩ MAX. (Initial)
Dimensions	91.335.842.5
孔位数	56

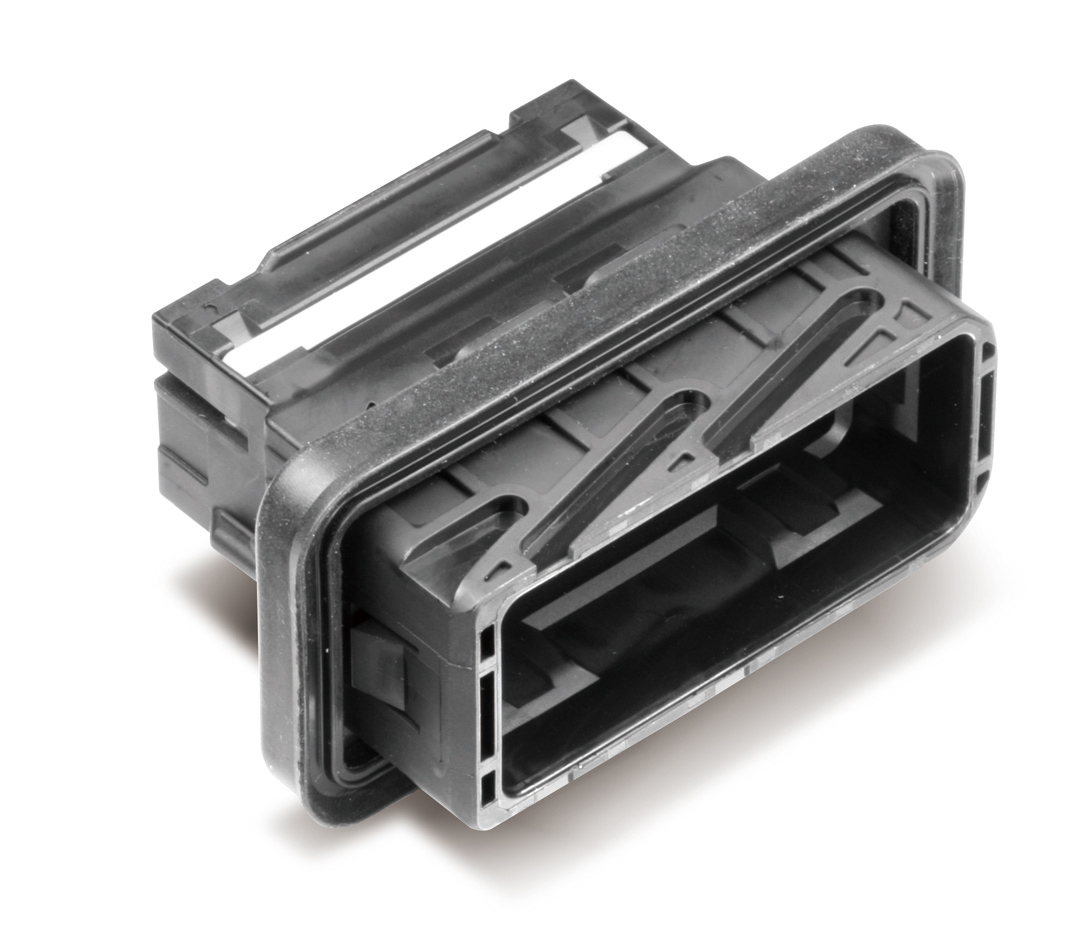

Mating Connector	MG646018-5
Mating Rear Holder	MG676662-41
颜色	Black
Mating Terminal	ST741360-3, ST741361-3, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3
TPA	YES
Wire Range	025:CHFUS 0.22, AVSS 0.3~0.5, 060:AVSS 0.85, AVSS 1.25,AVSS 0.3+0.3, AVSS 0.3, AVSS 0.5, CHFUS 0.22, 110:AVSS1.25, AESSXF1.25, FLRYA1.5, AVSS2.0, AESSXF2.0,FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85×0.85, AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A1.0, CHFUS0.22, AESSXF0.22,AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35
Mating Clip	MG631471
Insulation Resistance	DC500V / 100MΩ (MIN)
