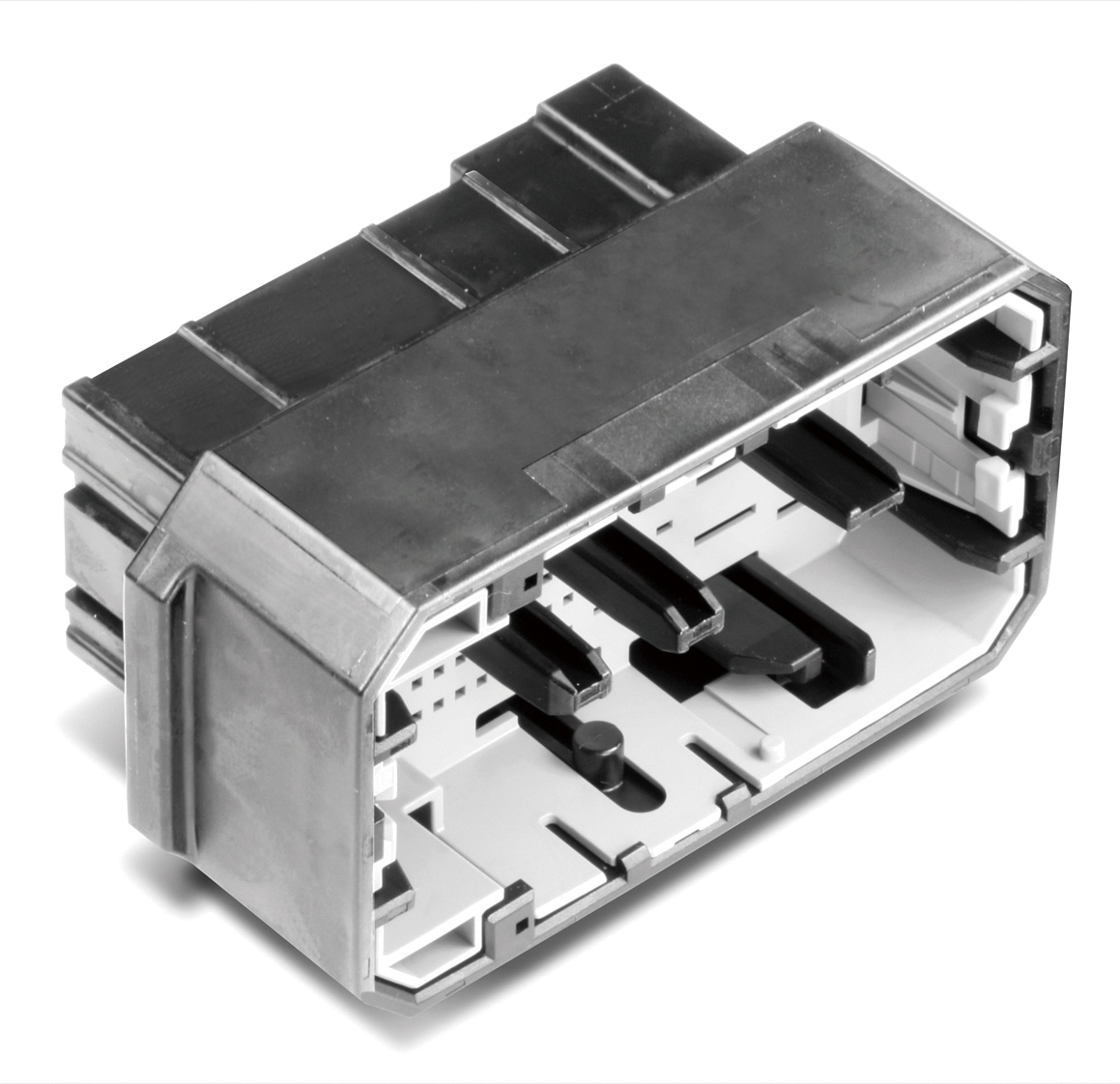

MG645921-5

TE	MG645921-5
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG645921-5 ket Black
Series	HYBRID SERIES
防水	否
Contact Resistance	025:10mΩ MAX(Initial),060:5mΩ MAX(Initial),110:3mΩ MAX(Initial),250:3mΩ MAX(Initial)
Dimensions	77.045.541.0
孔位数	82

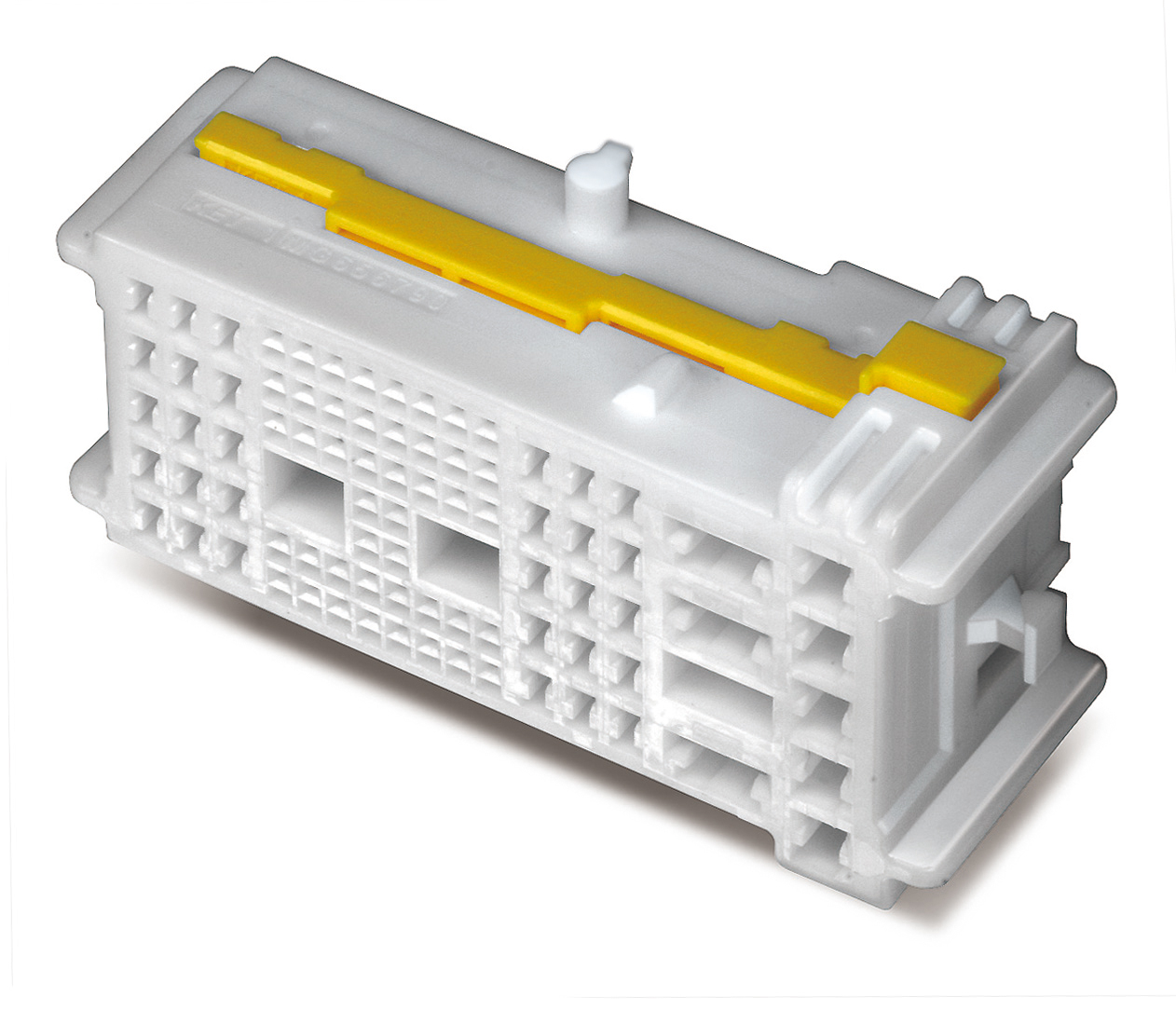

Mating Connector	MG656790
颜色	Black
Mating Terminal	ST741345-3, ST741346-3, ST741331-3, ST741332-3, ST741333-3, ST741285-3, ST741286-3, ST741287-3, ST741206-3, ST741207-3, ST741208-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	025:CHFUS0.22,AVSS0.3~0.5,CIVUS0.35~0.5,060:CHFUS0.22,AVSS0.22,AVSS0.3~0.5,AEXF0.5,CIVUS0.35~0.5,FLRY0.3~0.5,AVSS0.85~1.25,AEXF0.85,AVSS(0.3+0.3,0.3+0.5,0.5+0.5)FLRY0.75~1.5,CIVUS(0.35+0.35,0.5+0.5),AVSSXF1.0,110:AVSS0.3~0.5,AVSS0.85~1.25,CIVUS0.35+0.35,AVSS2.0.AVS3.0,250:AVS0.5~0.85,AVS1.0~2.0,AVS3.0,FLRY2.5~4.0
Mating Clip	090iiclip
Insulation Resistance	025:DC500V100mΩMIN,060:DC500V100mΩMIN,110:DC500V100mΩMIN,250:DC500V100mΩMIN
