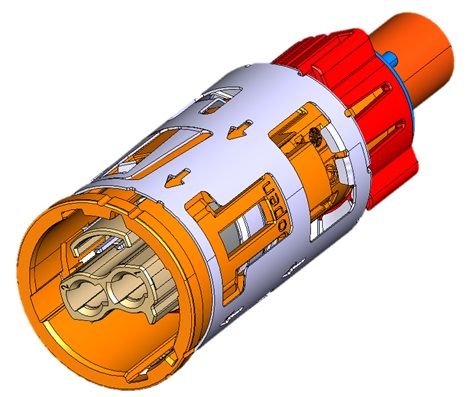

908-114-A55
- 类 型:
- 高压连接器
- 品 牌:
- Hirschmann
- 颜 色:
- 橙色
- 产品描述:
- HPS40-2 BUCHSE MCC SPP
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| Product type: | HPS40-2 |
| Socket type: | Female |
| Angle variant: | 180 ° |
| Plug type: | EMEA |
| Interface type: | Standard |
| Contact carrier coding: | Coding Z |
| Connection type: | MCC Wire connection |
| Number of HV connections: | 2 pol. |
| HV connection cross section: | 4,0 mm² |
| HV connection length: | 3000 mm |
| HV connection lead-out: | Straight cutted |
| HV wire manufacturer: | Coroplast |
| Operating condition: | U = 1000 VDC |
| Ambient condition: | -40°C to +140°C |
| Maximum current load: | 64 A / 80°C (6,0 mm²) |
| IP-degree of protection: | IPXXD (assembled), IPXXB (disassembled) |
| EMC: | >70 dB (10 KHz to 5 MHz) |
| Shielded area: | 360° circumferential |
| Shield contact resistance: | 2mΩ |
| Vibration strength class: | According to LV 215 |
| HVIL connection cross section: | Blade terminal |
| Number of HVIL connections: | 2 pol. |
| HVIL connection lead-out: | Blade terminal |
| HVIL connection length: | Blade terminal |
