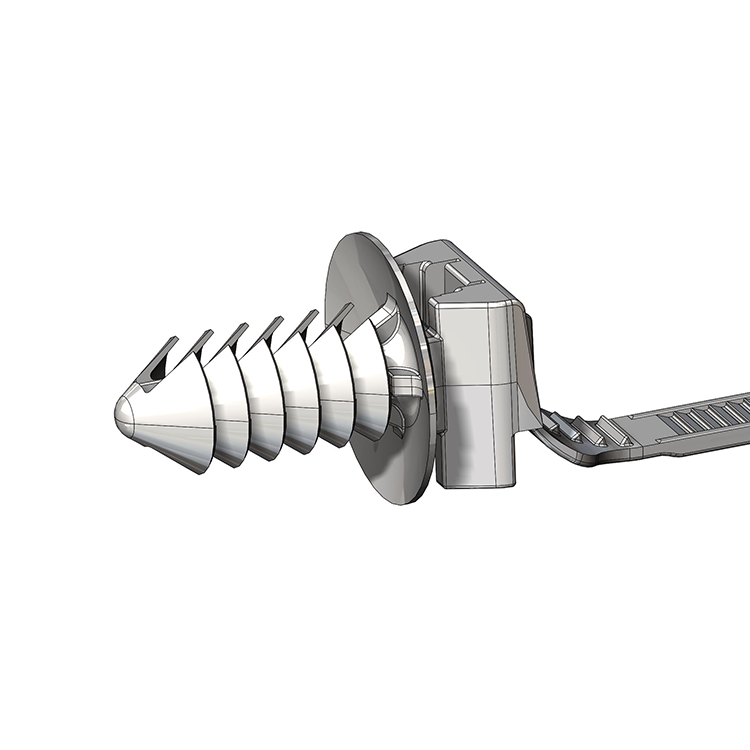

20105-0
- 类 型:
- 紧固件 圆/六角孔 Ø 6.35 - 6.85 mm 艾利丹尼森 <125 50 ≤ 7.0 mm 直枞树型 冲孔 螺纹孔 灰色 50 lbf. (222 N)
- 品 牌:
- 艾利丹尼森
- 颜 色:
- 灰色
- 产品描述:
- 7.5"LOW INSERT.FIR
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Attribute |
Specifications |
---|---|
Application |
Punched Hole Threaded Hole |
Fastener Type | Straight Fir Tree |
Mating Feature | Round / Hex Hole |
Mount Size | Ø 6.35 - 6.85 mm |
Bundle Diameter | 0.06 - 1.75" (1.6 - 44.5 mm) |
Maximum Panel Thickness | ≤ 7.0 mm |
Operating Temperature | -40 to 125°C / -40 to 257°F |
Resin | PA66 IMHS |
Color | Gray |
Insertion Force (lbf) |
Max. - 10 Typical - 7 |
Retention Force (lbf) |
Min. - 40 Typical - 72 |
Min. Loop Tensile Strength |
50 lbf. (222 N) |
