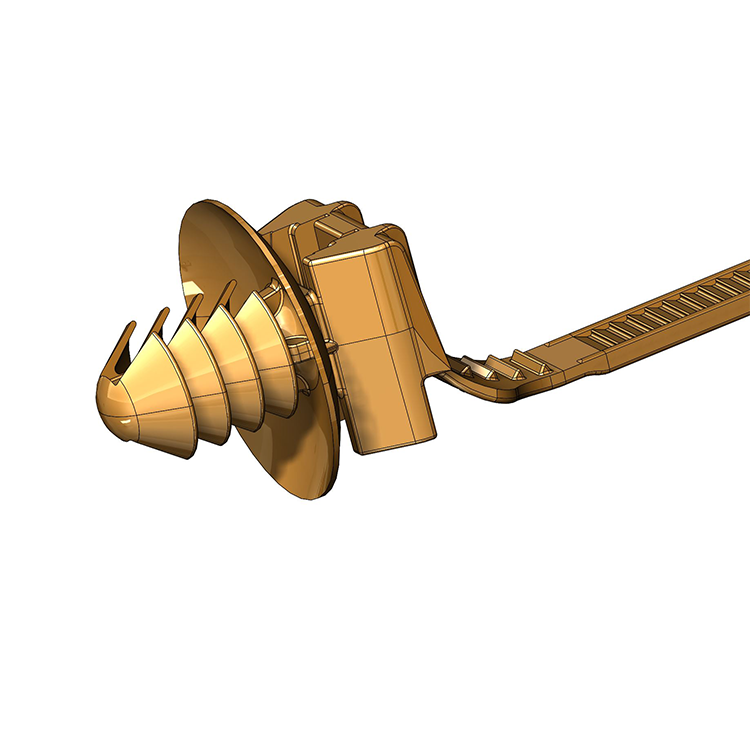

20120-HHBN
- 类 型:
- 紧固件 圆/六角孔 Ø 6.35 - 6.85 mm 艾利丹尼森 <150 40 ≤ 3.0 mm 直枞树型 冲孔 螺纹孔 棕色 50 lbf. (222 N)
- 品 牌:
- 艾利丹尼森
- 颜 色:
- 棕色
- 产品描述:
- 4 FLUTE LIFT,BROWN HH
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Attribute |
Specifications |
---|---|
Application |
Punched Hole Threaded Hole |
Fastener Type | Straight Fir Tree |
Mating Feature | Round / Hex Hole |
Mount Size | Ø 6.35 - 6.85 mm |
Bundle Diameter | 0.06 - 1.50" (1.6 - 38.1 mm) |
Maximum Panel Thickness | ≤ 3.0 mm |
Operating Temperature | -40 to 150°C / -40 to 302°F |
Resin | PA66 IMHH |
Color | Brown |
Insertion Force (lbf) |
Max. - 10 Typical - 7 |
Retention Force (lbf) |
Min. - 35 Typical - 40 |
Min. Loop Tensile Strength |
50 lbf. (222 N) |
