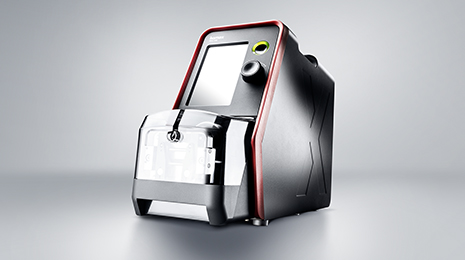

Mira 440 Series
- 类 型:
- 剪剥设备
- 品 牌:
- komax
- 颜 色:
- 其他
- 产品描述:
- Mira 440 剥线钳是具有大量同轴或三轴电缆的线束的绝佳选择。它特别适用于中小型批量生产。旋转扁平刀片确保了同轴连接器所需的高精度。Mira 440 可处理 Mira 440 SF 型号中的单芯电线和多芯电缆以及半柔性电缆。全面的功能,简单的操作和智能的设计使机器成为同轴电缆加工的专家。
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Three versions the right one for every need | |||
Mira 440 | Mira 440 SF | Mira 440 3B | |
Standard cables | • | • | • |
Coaxial, triaxial and hybrid cables | • | • | • |
Semiflex cables | • | ||
Flexible coaxial cables with hard insulation | • | ||
Tip cut | • | • | |
Coaxial cable | |||
Max. outer diameter1 | 9 mm (0.354 in.) | ||
Min. conductor diameter1 | 0.15 mm (0.059 in.) | ||
Mira 440 3B = 0.5 mm (0.0197 in.) | |||
Max. number of layers | 9 | ||
Single-conductor wire | |||
Conductor cross section (stripping)1 | 0.02 – 13 mm² (AWG 36 – 6) | ||
Mira 440 3B = 0.2 – 13 mm² (AWG 24 – 6) | |||
Max. conductor cross section for cutting1 | 2 mm² (AWG 14 / Ø 1.6 mm) | ||
General | |||
Max. strip length² | 40 mm (1.575 in.) | ||
Max. pull-off length | 44 mm (1.732 in.) | ||
Min. breakout length | 26 mm (1.024 in.) | ||
Increment for incision diameter | 0.01 mm (0.0004 in.) | ||
Increment for strip length | 0.01 mm (0.0004 in.) | ||
Gripper force | Programmable | ||
Blades | Rotary flat blades | ||
Trigger | Sensor, touch screen, optional foot pedal | ||
Data interface | USB port for data backup, barcode scanner | ||
Article library: Max. number of articles | 3000 | ||
Sequence function: Max. number of steps | 100 | ||
Sequence library: Max. number of entries | 1000 | ||
Typical cycle time | ≥ 5.6 sec.³ | ||
Production rate | 650 pcs/h³ | ||
Electrical connection | 50/60 Hz, 100 – 240 V AC, | ||
User interface | 5" color touch screen, multi-touch function + dial | ||
Ambient temperature for operation | 5 – 40 °C | ||
Dimensions (B × H × T) | 141 × 290 × 473 mm (5.5 × 11.4 × 18.6 in.) | ||
Weight | 14 kg (31 lbs.) | ||
CE conformity | Conforms to the CE directives on machine safety and electromagnetic compatibility. | ||
1 We recommend using sampling for wires that are difficult to process and wires at the limits of the specifications. | |||
² The maximum strip length is reduced by the length cut from the end. | |||
³ In practice, production rate and cycle time depend on the settings and the operator’s experience. | |||
Accessories | |||
Foot pedal Mira | Instead of wire sensor tripping |
