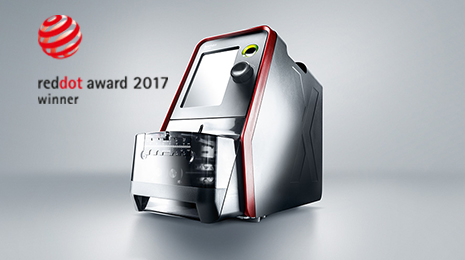

Mira 230/230 Q
- 类 型:
- 剪剥设备
- 品 牌:
- komax
- 颜 色:
- 其他
- 产品描述:
- 来自科马克斯的米拉230和米拉230 Q就是这种情况的答案。剥线钳具有极广泛的应用范围,操作简单,生产率高。凭借特殊功能及其文章库,这些模型实现了高水平的可重复质量。Mira 230 Q 现在具有集成的 ACD(自动导体检测器)切口监控功能。它们的序列处理能力和智能设计使其成为多导体剥离的首选。
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Wire cross section (stripping) | 0.03 – 8 mm², AWG 32 – 8 ¹) |
Max. outer diameter | 6.5 mm (0.256 in) |
Stripping length (StrL) | 1.5 to 46 mm (0.06–1.81 in) |
Stripping length with cutting | = 46 - CL mm (= 1.81 - CL in) |
Cutting length (CL) | = 46 - StrL mm (= 1.81 - StrL in) |
Pull off length | up to 46 mm (1.81 in) |
Max. wire cross section for cutting | 2 mm² / AWG 14 / ø 1.6 mm (ø0.063 in) |
Increments for incision diameter | 0.01 mm (0.0004 in) |
Increment for stripping length | 0.01 mm (0.0004 in) |
Min. breakout length with standard grippers | 11 mm (0.43 in.) |
Min. breakout length with thin grippers (option) | 8 mm (0.31 in.) |
Article library: max. number of articles | 3000 |
Sequence function: max. number of steps | 100 |
Incision monitoring | ACD (Automatic Conductor Detector) for Mira 230 Q |
Typical cycle time | 0.35 s |
Electrical connection | 100 – 240 V AC, 120 VA |
Compressed air connection (air jet for cleaning) | 5 – 7 bar |
Screen size | 5” |
Switch-on time from standby mode | |
Ambient temperature for operation | 5 – 40 °C |
Dimensions (W x H x D) | 141 × 290 × 473 mm (5.5 × 11.4 × 18.6 in) |
Weight | 11 kg (24 lb) |
CE conformity | Conforms to the EU directives on machine safety and electromagnetic compatibility. |
¹) For difficult to process wires and wire diameters greater than AWG 10, we recommend you have samples made prior to purchase. |
