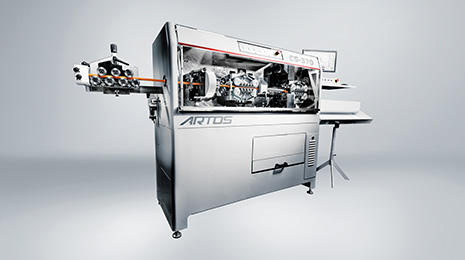

Artos CS-370

产品描述：: 功能强大的 Artos CS-370 可精确、快速地处理大直径的重型电缆。有了它，可以毫无问题地切割和剥离直径达35 mm，长度仅为50 mm的电缆。特殊应用为多层和屏蔽电缆提供了广泛的加工选项。CS-370 提供电缆分切和喷墨打标选项，用途广泛，适用于所有大型电缆应用。

Wire sizes	Up to 300 mm2 (600 MCM)*
Outer wire diameter	Up to 35 mm (1.4”) *
Minimum wire length	Standard mode: 152 mm (6’’) ; short mode
Strip lengths	Strip lengths pull values 1,0 – 1000 mm
	Full strip removal length
	left side 168 mm, right side 518 mm
Electrical requirement	220 VAC, 1 phase, 50/60 Hz
Air requirement	5 CFM (Cubic feet/min.) 5 – 6 bar (80 psi)
Dimensions	Length 1790 mm (70,5 inches), machine body 2940 mm (115,75 inches) with operator station and single straightener width 605 mm (24 inches), height 1453 mm (57 inches)
Weight	820 kg (1808 lbs.) – machine weight
	1090 kg (2400 lbs.) – packed weight
* wire dependent, may require purchase of one or more options shown.
