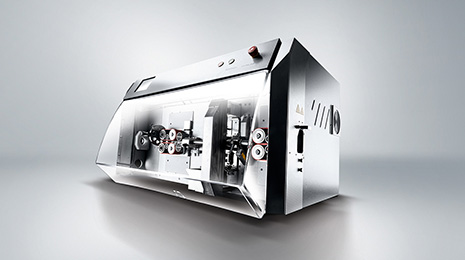

Kappa 350

类　　型：: 剪剥设备

品　　牌：: komax

颜　　色：: 其他

产品描述：: Kappa 350 是一款动力站机器，采用双叶片原理处理直径达 120 mm²、最大外径为 35 mm 的圆形导体。它具有皮带传动或各种驱动辊，可用于电线运输。可切换的压力单元可调节驱动单元的接触压力以适应加工步骤。先进的传感器技术确保消除切割损失。这些在上横截面范围内特别重要。

Wire cross-section, stranded wires*	2.5 – 120 mm² AWG14 – 5/0
Max. outside diameter	35 mm (1.38 in.)
Length accuracy repeatability	Repeat accuracy
	±(0.2%+1 mm (0.04 in.))
Flat wire processing	–
Wire length range	1 mm – 800000mm (0.039 in. – 874.9 yd.)
Max. wire transport speed	4.8 m/s (189 in./s)
Max. strip length full stripping	Side 1: 290 mm (11.42 in.)
	Side 2: 150 mm (5.9 in.)
Max. strip length partial strip	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)
Max. strip length semi strip	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)
Programmable intermediate strip, number and length	programmable
	(No limitations in terms of number and length)
Automatic conductor detector (automatic detection of cut depth)	standard
Cable detector(queue, end and slip monitoring, zero-cut optimization, outer diameter measurement)	standard
Number of blade positions	2 blade positions (+1 slitting blade)
Wire end detection	–
Length measuring system	standard
Straightener unit	optional (external)
IOCS interface (expandable)	3 (6)
USB/standard ethernet	standard
Noise level
Drive system	Belt or roller drive
Production table	standard
Electrical connection	110/230 VAC ±10% 50/60 Hz 1.2 kVA
Pneumatic connection	5–8 bar (73–116 psi)
Dimensions (W×H×D)	1090 × 1425 × 890 mm
	(42.9 × 56.1 × 35 in.)
Weight	approx. 270 kg (595.2 lb)
* Kappa machines can process many conductors outside the indicated cross-section range, but certain extremely hard, tough wires may not be able to be processed, even if they are within the indicated cross- ubt, we are happy to provide you with samples of your wires.

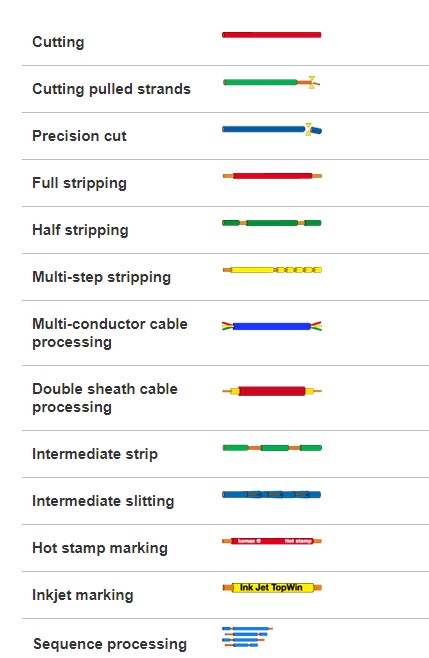

屏幕截图 2022-09-20 141918.jpg
