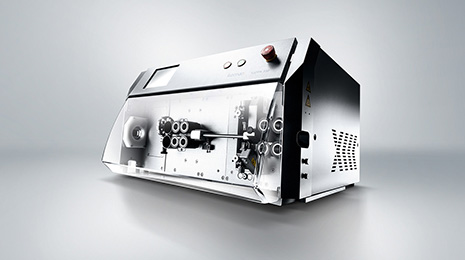

Kappa 330
- 类 型:
- 剪剥设备
- 品 牌:
- komax
- 颜 色:
- 其他
- 产品描述:
- Kappa 330以其广泛的加工范围令人信服。它有单头或双头两种类型,单头可以转换为双头。两种刀片型号可同时作为双头提供。Kappa 330 具有可选的分切单元、内导体和带状电缆加工,非常适合想要加工各种电缆的客户。
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Kappa 330 SH | Kappa 330 DH | |
Wire cross-section, stranded wires* | 0.22 – 35 mm² AWG24 – 2 | 0.22 – 35 mm² AWG24 – 2 |
Max. outside diameter | 16 mm (0.63 in.) | 16 mm (0.63 in.) |
Length accuracy | Repeat accuracy | Repeat accuracy |
±(0.2%+1 mm (0.04 in.)) | ±(0.2%+1 mm (0.04 in.)) | |
Flat wire processing | Optional 40 mm (1.6 in.) | Optional 40 mm (1.6 in.) |
Wire length range | ||
Max. wire transport speed | 4.0 m/s (157.5 in./s) | 4.0 m/s (157.5 in./s) |
Max. stripping lengths, full strip | Side 1: 180 mm (7.09 in.) | Seite 1: 180 mm (7.09 in.) |
Side 2: 50 mm (1.97 in.) | Seite 2: 50 mm (1.97 in.) | |
Max. stripping lengths, partial strip | Side 1: 999.9 mm (39.37 in.) | Side 1: 999.9 mm (39.37 in.) |
Side 2: 999.9 mm (39.37 in.) | Side 2: 999.9 mm (39.37 in.) | |
Max. stripping lengths, semi strip | Side 1: 999.9 mm (39.37 in.) | Side 1: 999.9 mm (39.37 in.) |
Side 2: 999.9 mm (39.37 in.) | Side 2: 999.9 mm (39.37 in.) | |
Intermediate stripping | Programmable(no limitations in terms of number and length) | ProgrammableProgrammable (no limitations in terms of number and length) |
Optional inner conductor separation | No | Yes |
Upgrade to dual head | Yes | |
Optional fully programmable slitting module | Yes | Yes |
Automatic conductor detector (Conductor detector)(automatic detection of cut depth) | Optional | Optional |
Cable detector (Cable detector)(queue, end and slip monitoring, zero- cut optimization, outside diameter measurement) | Optional | Optional |
Wire end detection | – | – |
Length cut system | Optional | Optional |
Straightening unit | Optional (external) | Optional (external) |
IOCS interface (expandable) | 3 (6) | 3 (6) |
USB/ethernet | Standard | Standard |
Noise level | ||
Production table | Optional | Optional |
Electrical connection | 110/230 VAC ±10% 50/60 Hz | 110/230 VAC ±10% 50/60 Hz |
520 VA | 520 VA | |
Pneumatic connection | 5–8 bar (73–116 psi) | 5–8 bar (73–116 psi) |
Dimensions (W×H×D) | 650×380×690 mm | 650×380×690 mm |
(25.6×15×27.2 in.) | (25.6×15×27.2 in.) | |
Weight | approx. 55 kg (121.2 lb) | approx. 60 kg (132.3 lb) |
* Kappa machines can process many conductors outside the indicated cross-section range, but certain extremely hard, tough wires may not be able to be processed, even if they are within the indicated crosssection range. If in doubt, we are happy to provide you with samples of your wires. |
