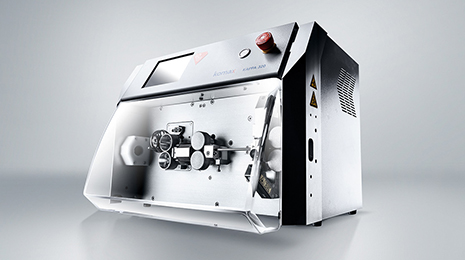

Kappa 320

产品描述：: Kappa机床的切削力、高产量和先进的传感器技术使Kappa机床成为自动切割和剥离的首选，即使对于较小的线材横截面也是如此。这些机器由于其简单、直观的控制元件，可以非常有效地使用。

Wire cross-section, stranded wires*	0.05 – 10 mm²
	AWG 30 – 8
Max. outer diameter	10 mm (0.4 in.)
Length accuracy	Repeat accuracy
	± (0.2 % + 1 mm (0.04 in.)
Flat cable processing	Optional 12 mm (0.47 in.)
Wire length range	1 – 800’000 mm (0.039 in. – 874.9 yd.)
Short wire lengths	Optional 30 mm
Max. wire transport speed	4.0 m/s (157.5 in./s)
Max. stripping lengths	Full strip
	Side 1: 100 mm (3.94 in.)
	Side 2: 40 mm (1.57 in.)
	Semi strip
	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)
	Multi-step strip
	Side 1: 999.9 mm (39.37 in.)
	Side 2: 999.9 mm (39.37 in.)
Intermediate strippingNumber and length	Optional
Automatic conductor detector(automatic detection of cut depth,cable end monitoring)	Optional
Cable detector(queue, end and slip monitoring, zero-cut optimization, outside diameter measurement)	Optional
Length measurement system	Optional
Straightening unit	Optional
IOCS interface (expandable)	2 (4)
USB/ethernet	Standard
Noise level
Drive system(with motorized closing axis)	Single roller
Production table	Optional
Electrical connection	110/230 VAC ±10%
	50/60 Hz
	300 VA
Pneumatic connection	Optional for blade cleaning
Dimensions (W × H × D)	510 × 380 × 470 mm
	(20 × 15 × 18.5 in.)
Weight	34 kg (75 lbs)
* Kappa machines can process many conductors outside the indicated cross-section range, however certain extremely hard, tough wires may not be able to be processed even if they are within the indicated cross-section range. If in doubt, we are happy to provide you with samples of your wires.

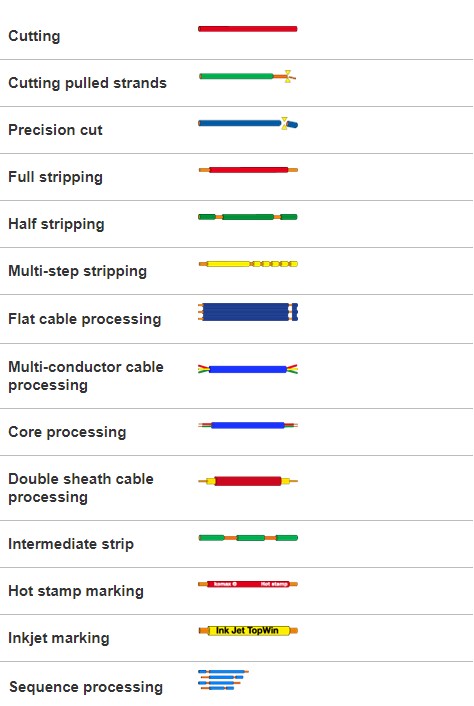

屏幕截图 2022-09-20 132342.jpg
